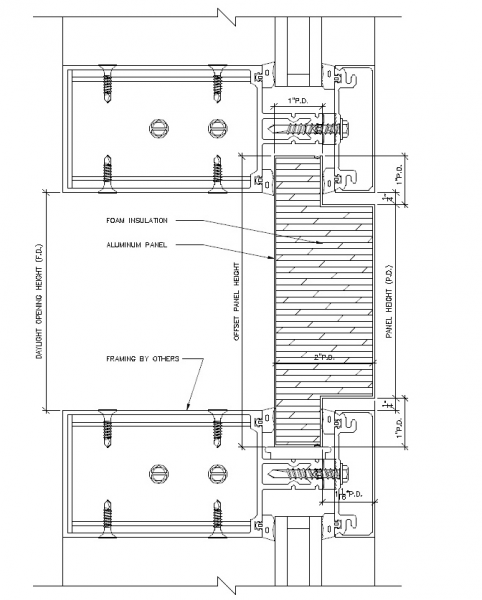

Our standard 2" insulated Tecpan Off-Set insulated panel is made up of an .040 aluminum color face, Extruded Polystyrene core (XPS), and a mill finished aluminum back pan, which fits into the face pan. Tecpan™ Off-Set panels offer the ability to add a greater R value to the building envelope. This panel offers an R value of 10.20. Because all edges of this pan in pan assembly are permanently sealed, this panel is virtually unaffected by moisture. This Insulated Metal Off-Set panel is offered to bring the panel flush with the window mullions and no mechanical fasteners or adhesives are used. Available Options: Thickness range from 1" to 3" Painted, Anodized, or #4 or #8 polished Stainless Steel & Textured Finishes Polyisocyanurate Foam (ISO) Core for a greater R value Plywood (PW) Core, offering impact resistance 4mm Cement Board (4mmCB) , offering small missile impact resistance. Available in various standard or custom configurations in aluminum or stainless steel. Our standard colors offer beauty and durability with a coil coated Kynar 500 finish. Both solid and metallic colors come with a 20 year finish warranty and little to no maintenance is required. With offset edges these panels are used as a flush glazing panel for storefront and curtain wall applications in place of glass. The Tecpan offset panel brings the panel flush with the window mullions and no mechanical fasteners or adhesives are used. Product Number Equivalents: Firestone Una-Clad Series 30 is equal to our 2” Tecpan Off-Set
